flowchart LR
subgraph cab["DDR cabinet"]
pads["Pads and panel buttons"]
lights["Cabinet lights"]
amp["Cab audio receiver"]
end
subgraph bridge["Snekboard"]
io["Pad IO and lights"]
end
subgraph pc["Mini PC"]
sm["StepMania"]
audio["3.5mm audio in"]
end
subgraph shelf["On the shelf optional"]
konami["System 573"]
end
pads --> io
lights --> io
io -->|USB-C| sm
amp -->|RCA red white| audio
io -.->|same harnesses| konami
Vol 5: Stepmania Upgrades
DDR
Snekboard, a mini PC, and running StepMania on the cab without killing the original hardware.

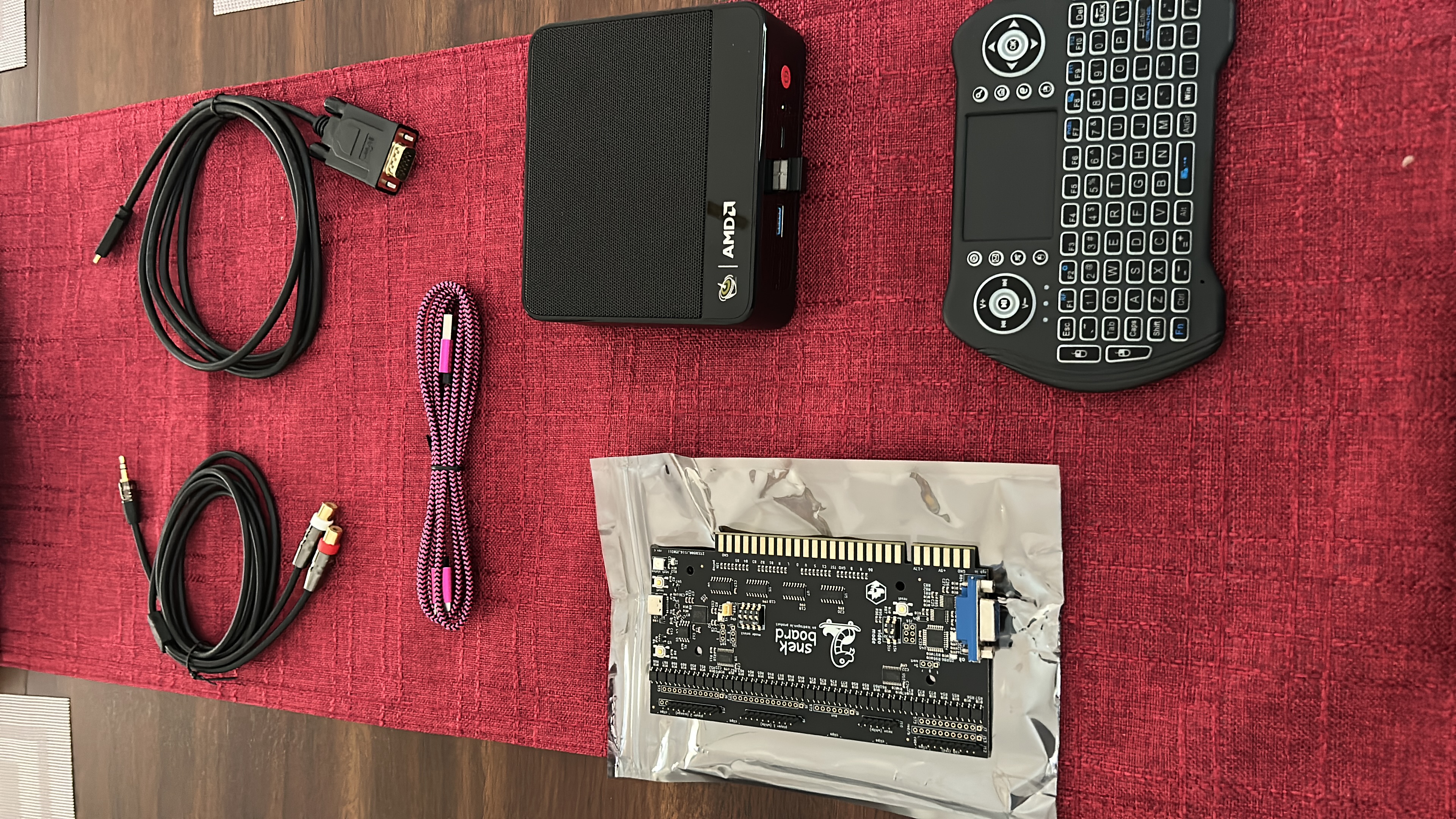

What I bought
Hardware mods were mostly done. LCD, pads, the cab playing well. Next idea I kept seeing: swap the 573 for a PC running StepMania.

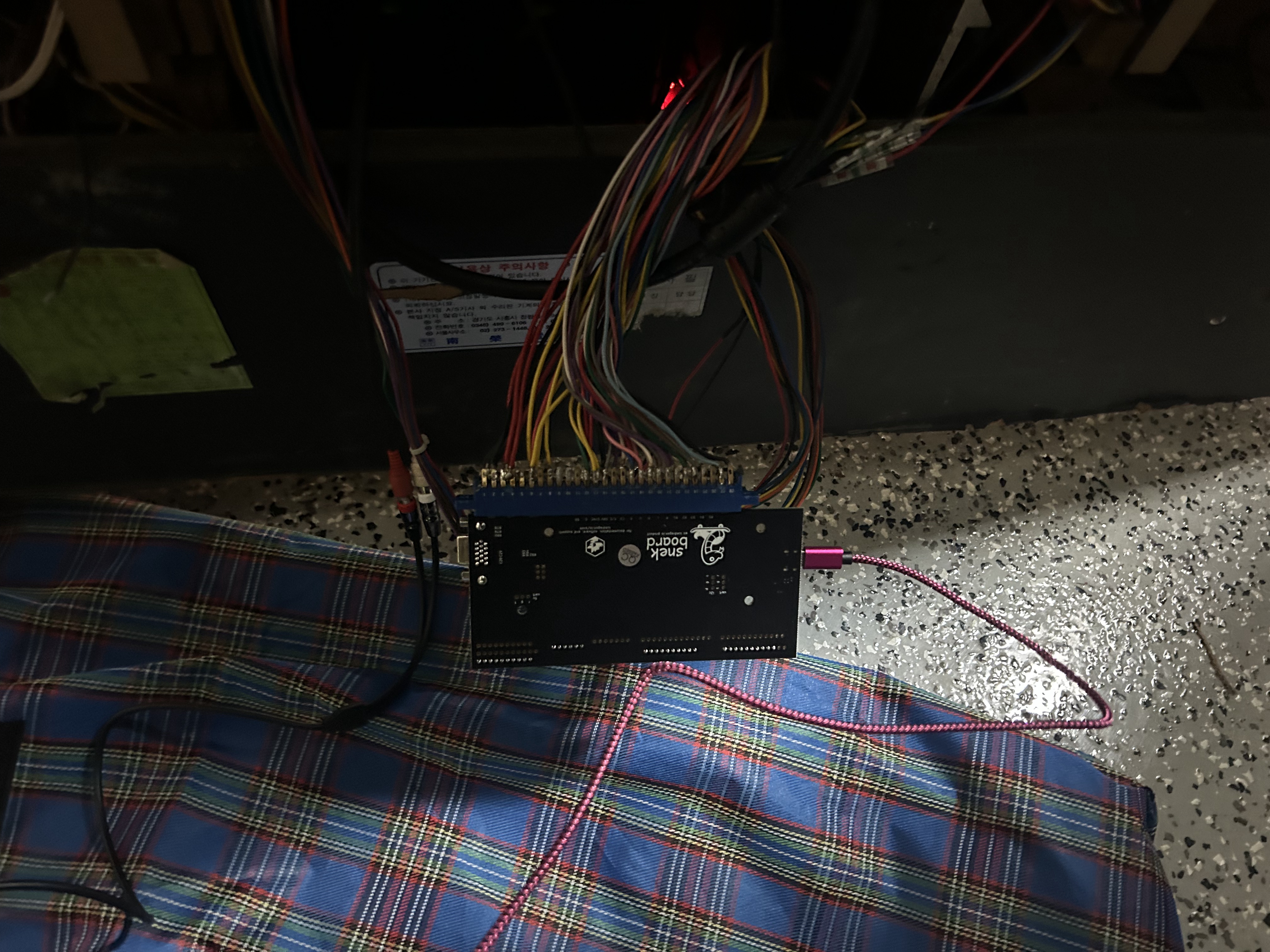

The Snekboard makes that possible without cutting harnesses. Pad IO and lights plug into it like they did on the 573. USB-C goes to the PC. Audio runs from the cab receiver into the mini PC’s headphone jack. Reversible in a few minutes.
Signal path for the StepMania swap.
Ordering parts
Snekboards are hard to find. When Ice Dragon had stock, I ordered one to stash for later. Lasted about a week before I wanted to install it.
My brother-in-law helped spec a mini PC and plan the layout so the cab wouldn’t become a PC tower with a marquee.

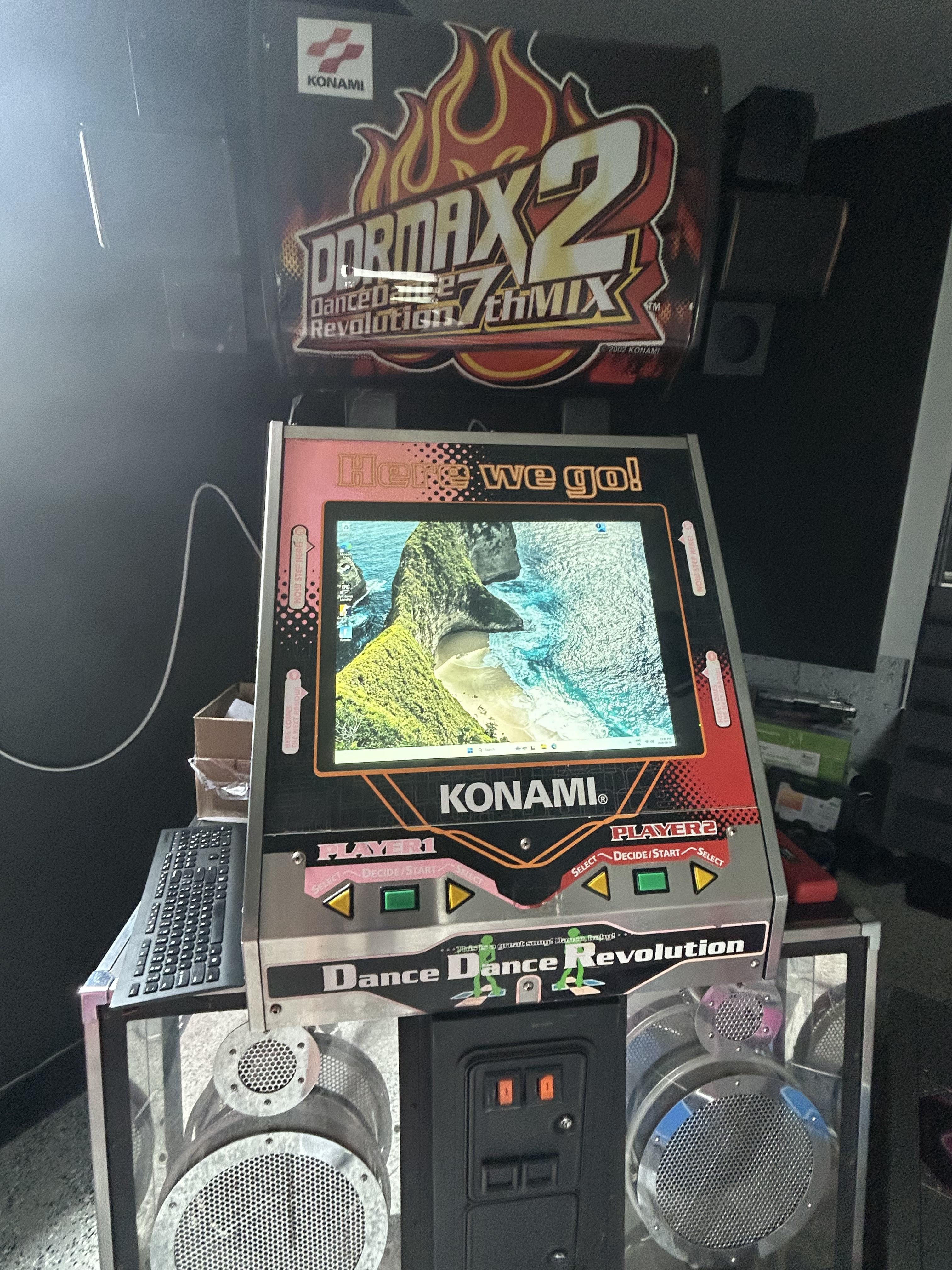

The Beelink is probably overkill for StepMania, but it’s small, fits where the 573 lived, and leaves room for other uses. The 573 still works and sits on the shelf. After the CRT died, this felt like the next aging part worth planning around.
Wiring it up

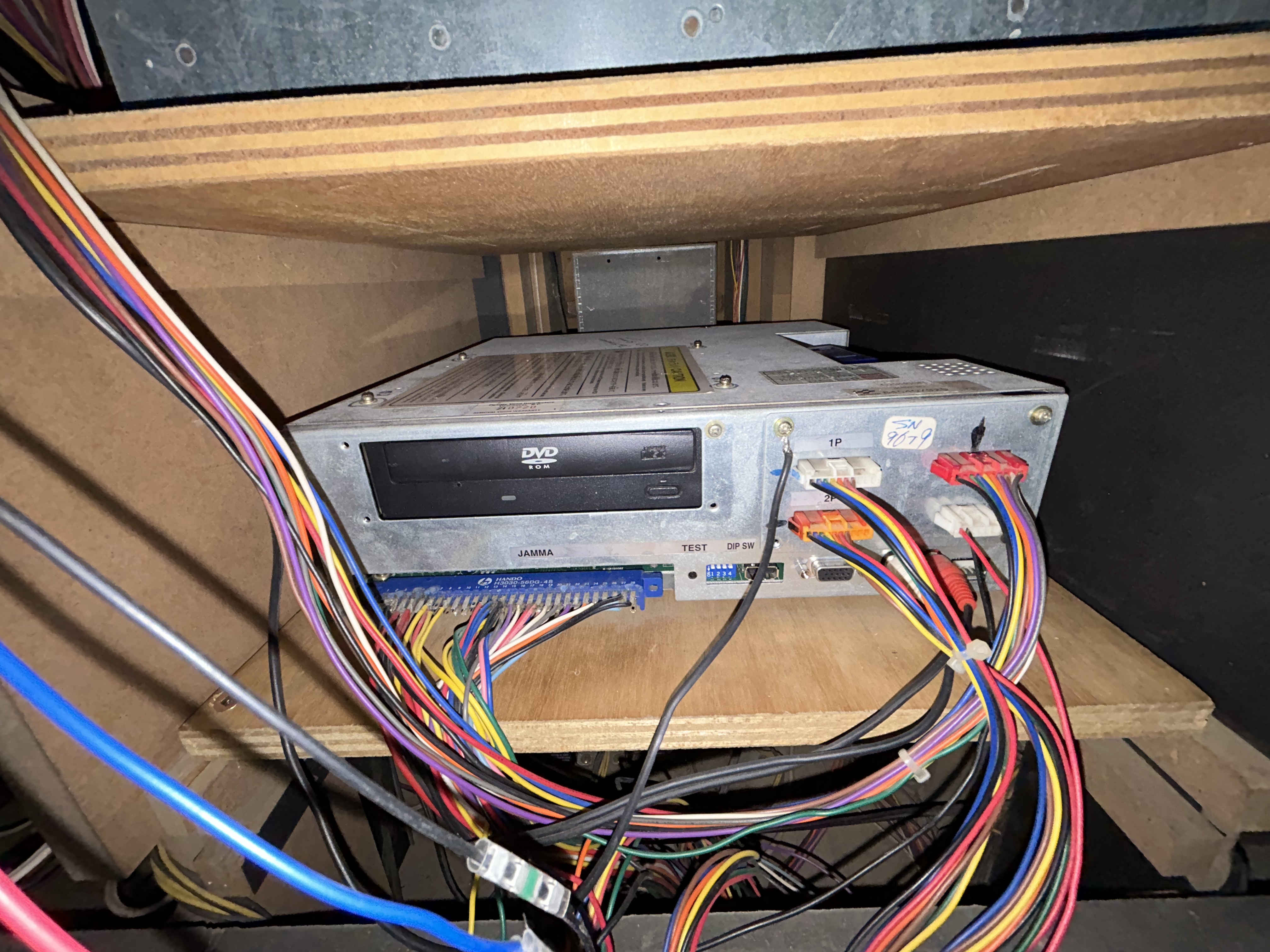

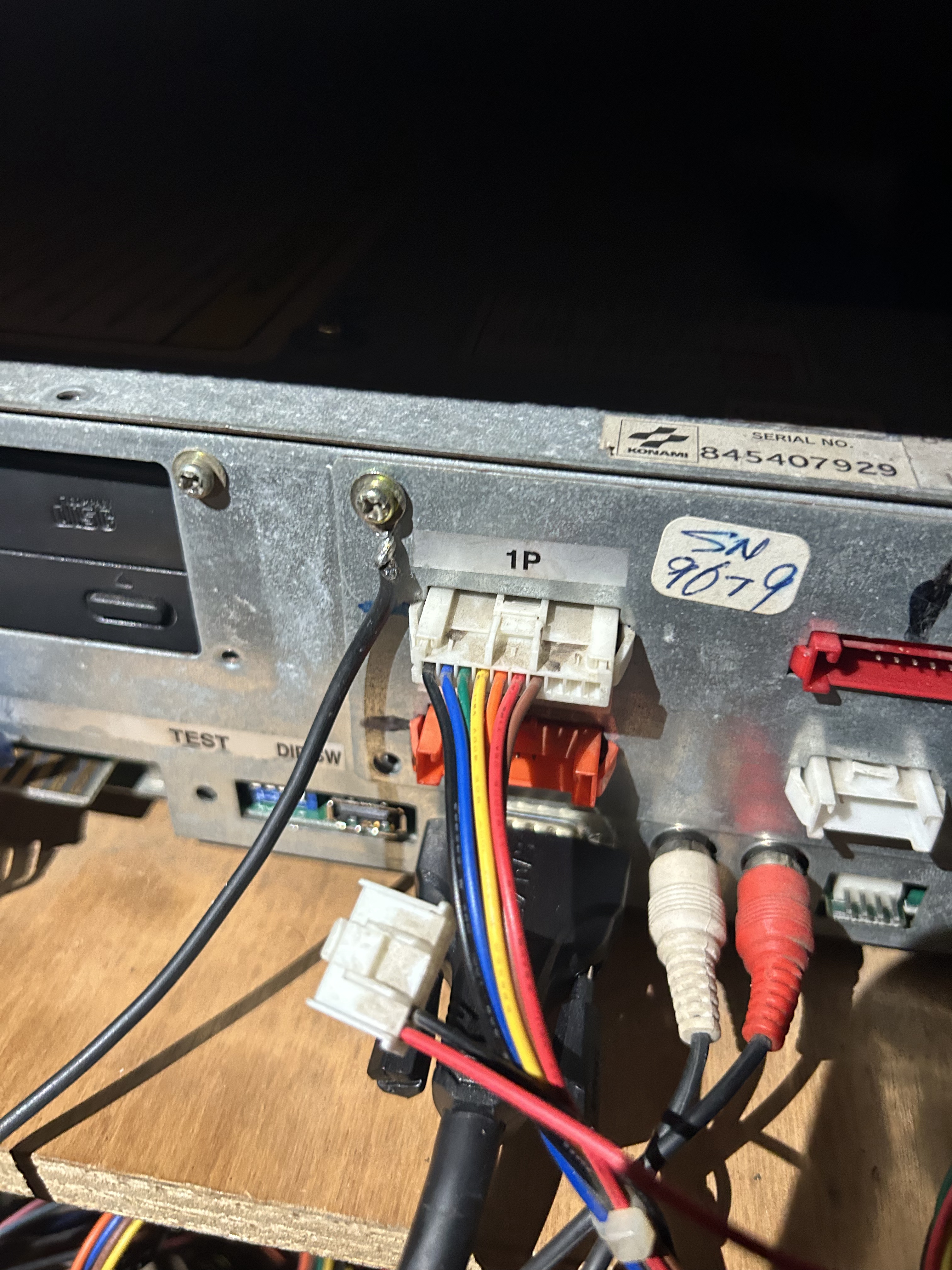

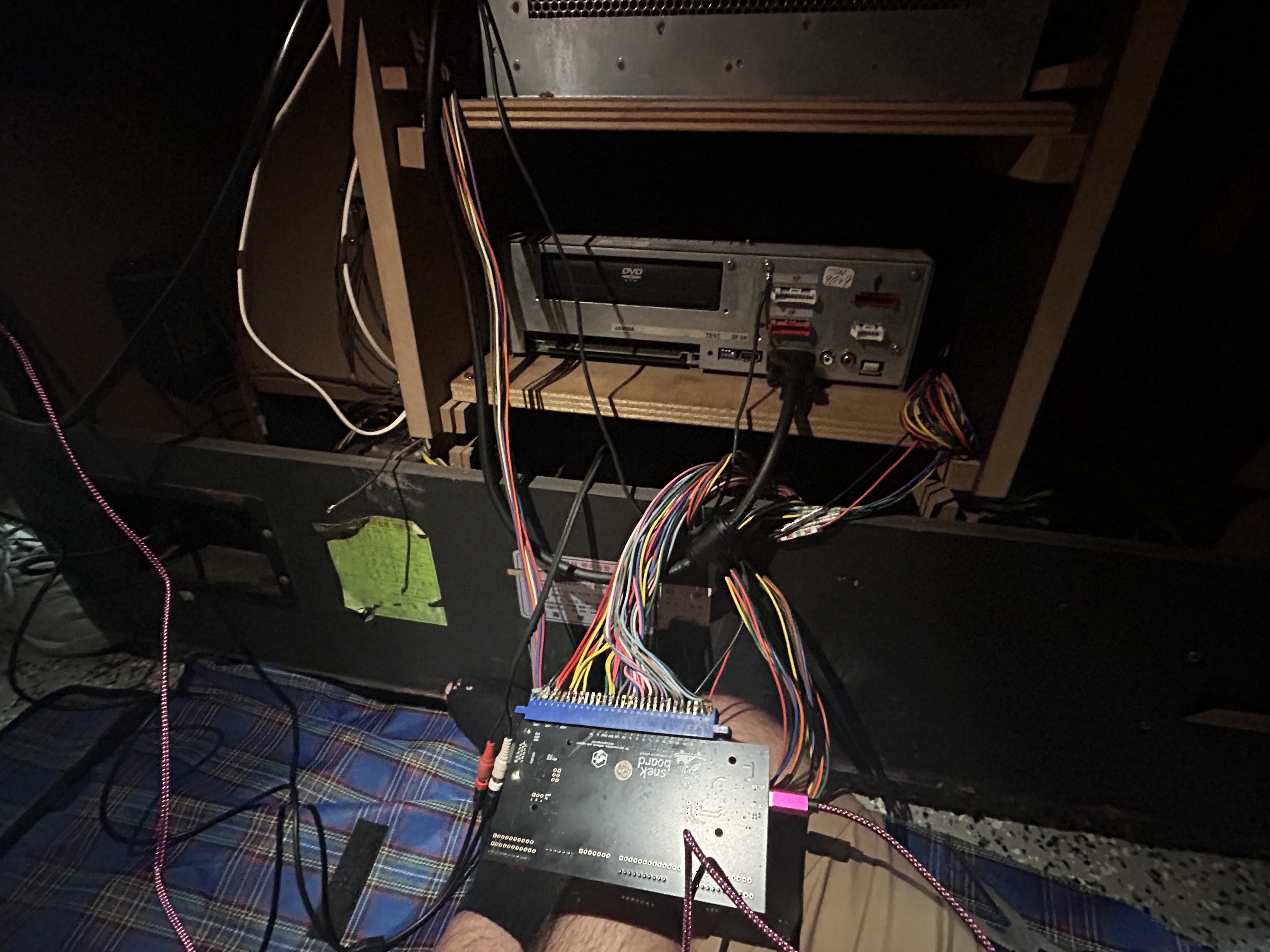

We photographed every 573 connection first, then followed Ice Dragon’s guide. Same harnesses, just a different brain.

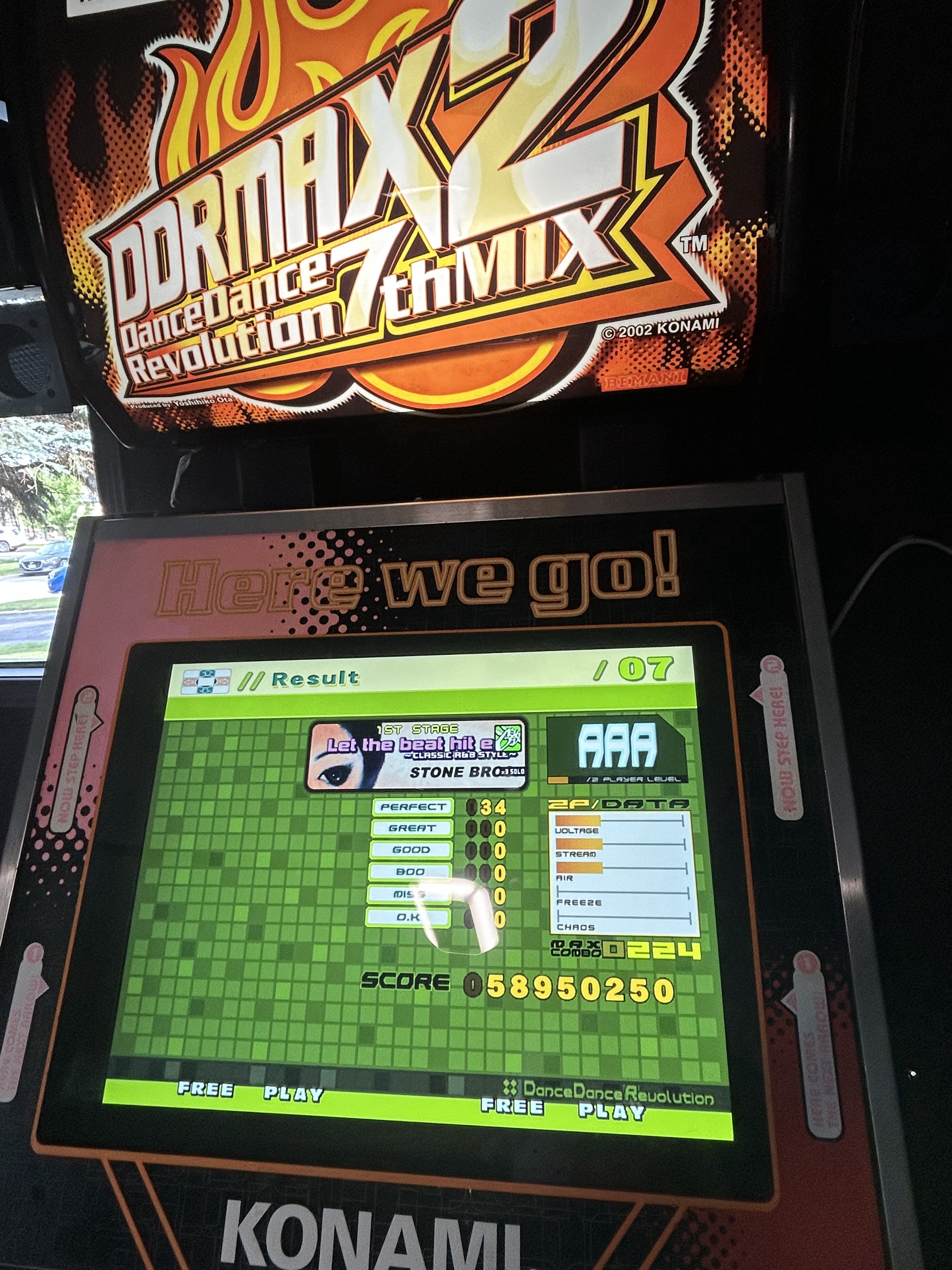

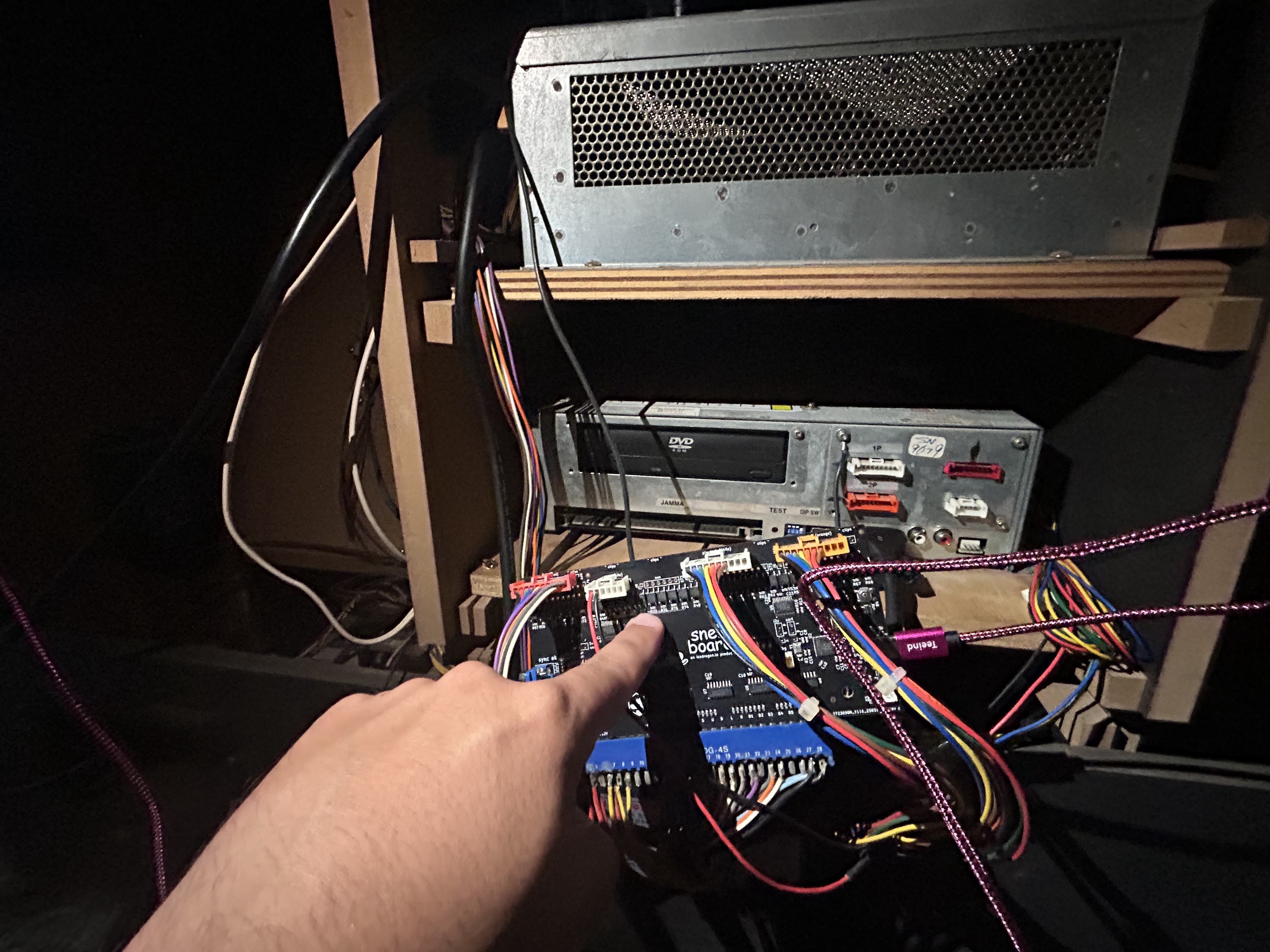

I’m running BeWare’s Extreme mod, which is about as close to arcade-perfect DDR Extreme as I’ve seen at home. Getting the cabinet lights working took an extra step, covered in Ice Dragon’s docs. Pads registered as USB right away. Mapping arrows and buttons in StepMania took some trial and error.
What you can do with it

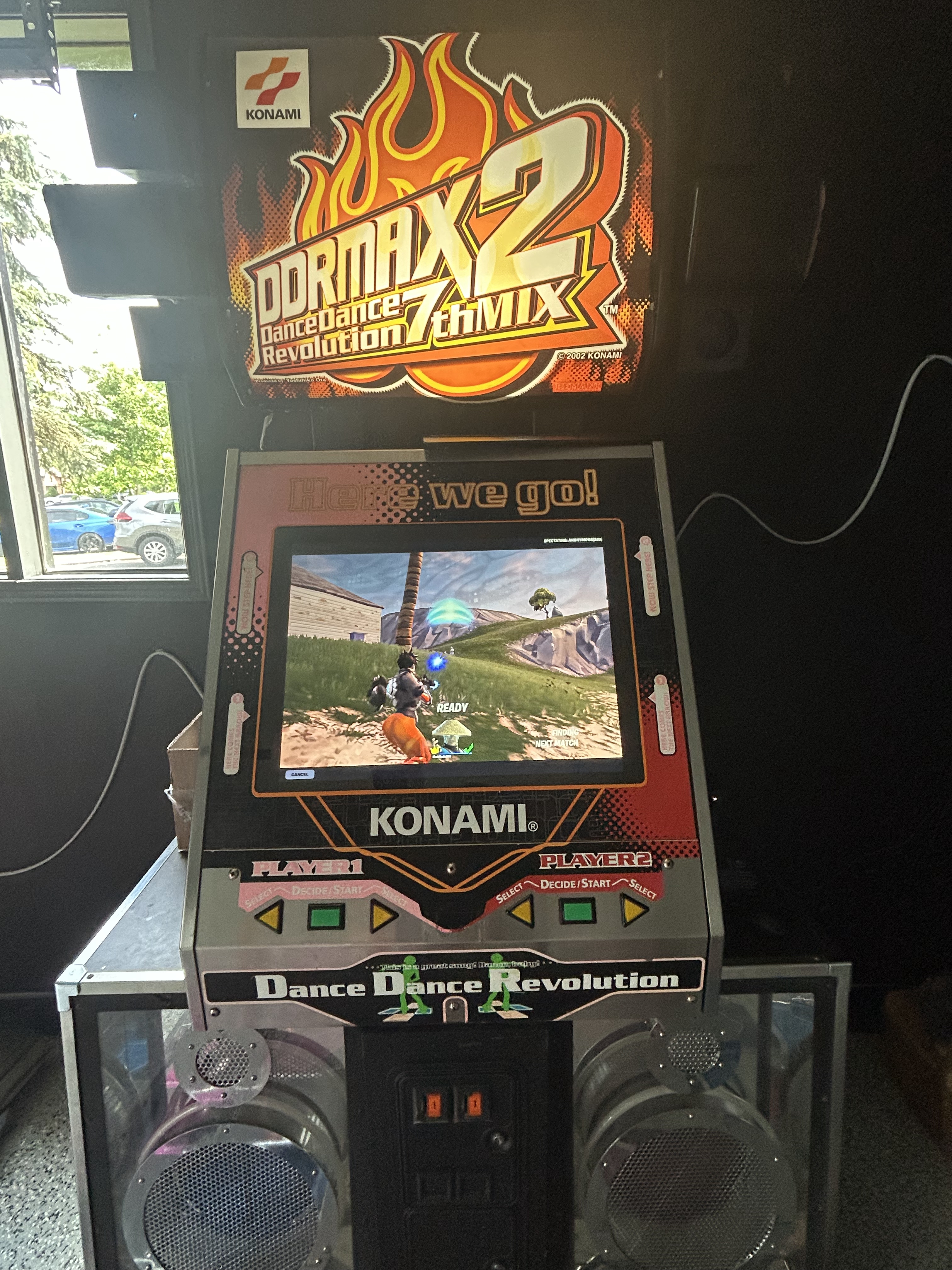

LCD, mini PC, pads as a USB controller: we had to try Counter-Strike and Fortnite on a DDR cab. Ridiculous. Worth it.

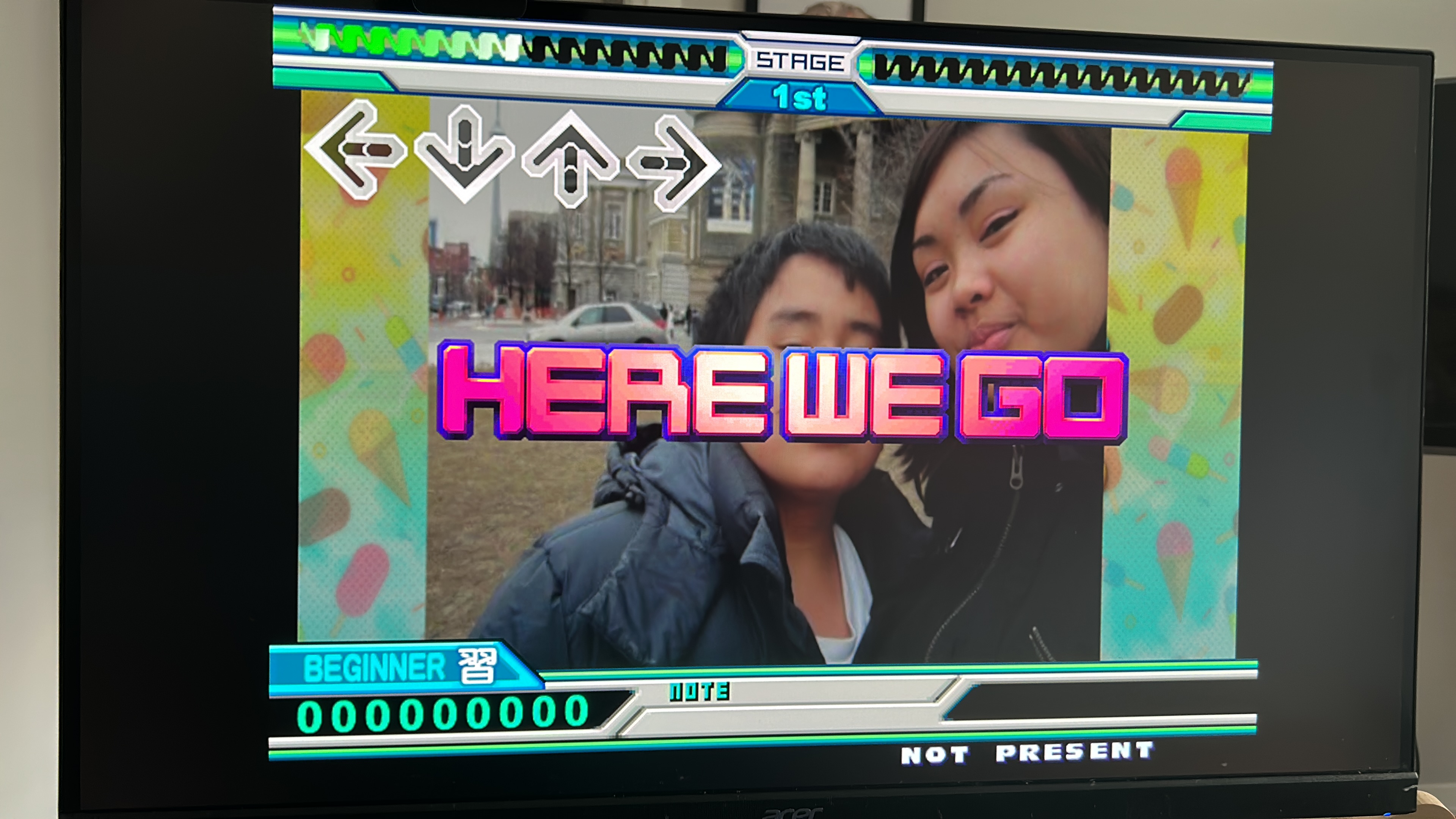

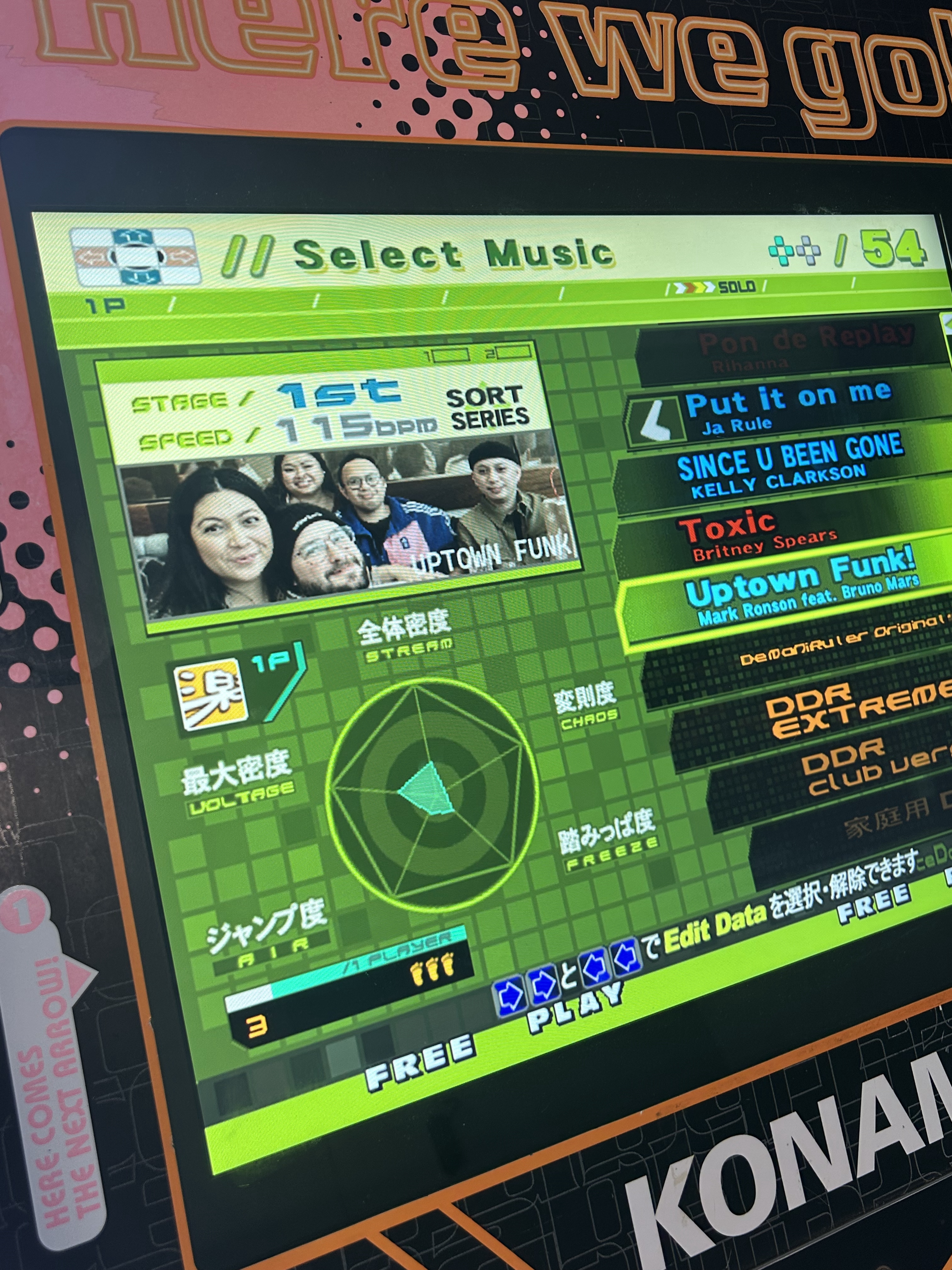

The real win is StepMania. Any mix, plus customs that look at home on the cab with BeWare.
The whole thing feels next gen now: LCD, mini PC, custom software. Still plays like an arcade machine because it’s still this cabinet. That’s how it gets used now.
